Siemens

6SL3246-0BA22-1CA0

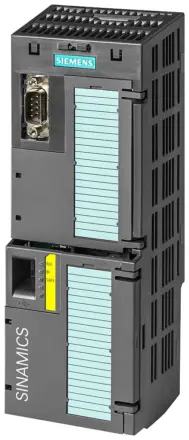

6SL3246-0BA22-1CA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3246-0BA22-1CA0 Siemens

6SL3246-0BA22-1CA0 Siemens - SINAMICS G120 Control Unit CU250S-2 CAN Integrated CANopen supports vector control Basic positioner EPOS via License extended functions 4 configurable DI/DO 6 DI (3 F-DI), 5 DI 3 DO (1 F-DO) 2 AI, 2 AO Safety Integrated STO, SBC, SS1 Additional safety functions via "EXTENDED SAFETY" license Encoder interface: D-CLiQ+HTL/TTL/SSI Resolver/HTL via terminal Degree of protection IP20 USB and SD/MMC interface

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3246-0BA22-1CA0
Product Description SINAMICS G120 Control Unit CU250S-2 CAN Integrated CANopen supports vector control Basic positioner EPOS via License extended functions 4 configurable DI/DO 6 DI (3 F-DI), 5 DI 3 DO (1 F-DO) 2 AI, 2 AO Safety Integrated STO, SBC, SS1 Additional safety functions via "EXTENDED SAFETY" license Encoder interface: D-CLiQ+HTL/TTL/SSI Resolver/HTL via terminal Degree of protection IP20 USB and SD/MMC interface
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 3 Day/Days
Net Weight (kg) 0,610 Kg
Packaging Dimension 93,00 x 240,00 x 68,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948664100
UPC 887621263522
Commodity Code 85049090
LKZ_FDB/ CatalogID D11.1SD
Product Group 9779
Group Code R220
Country of origin Great Britain
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 4,4'-isopropylidenediphenol (Bisphenol A, BPA) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Electrical Data

Operating Voltage Via
The Power Module Dc 24 V
External Power Supply Dc 20 ... 29 V
Max. Power Consumption 2.00 A
Power Loss 12.00 W

Communication

Communication Canopen

Inputs / Outputs

Standard Digital Inputs
Number 15
Switching Level: 0→1 11 V
Switching Level: 1→0 5 V

Fail-Safe Digital Inputs

Number 3 (Use Of 2 × Di Standard)
Digital Outputs
As Relay Changer
Number 2
Output (Resistive Load) Dc 30 V, 0.5 A
As Relay Make Contact
Output (Resistive Load) Dc 30 V, 0.5 A
Analog / Digital Inputs
Number 2 (Differential Input)
Analog Outputs
Number 2 (Non-Isolated Output)
Closed-Loop Control Techniques
V/F Linear / Square-Law / Parameterizable Yes
V/F With Flux Current Control (Fcc) Yes
V/F Eco Linear / Square-Law Yes
Sensorless Vector Control Yes
Vector Control, With Sensor Yes
Encoderless Torque Control Yes
Torque Control, With Encoder Yes

Ambient Conditions

Ambient Temperature
Operation -10 ... 50 °C (14 ... 122 °F)
Storage -40 ... 70 °C (-40 ... 158 °F)
Relative Humidity
Max. Operation 95 % Connections
Signal Cable
Conductor Cross-Section 0.05 ... 1.50 Mm²
(Awg 28 ... Awg 16)

Mechanical Data

Degree Of Protection Ip20 / Ul Open Type
Net Weight 0.61 Kg (1.34 Lb)

Dimensions

Width 73.0 Mm (2.87 In)
Height 199.0 Mm (7.83 In)
Depth 67.0 Mm (2.64 In)

Standards

Compliance With Standards Ce, Ul, Cul, Rcm, Semi F47
Ce Marking Low-Voltage Directive 2014/35/Ec
