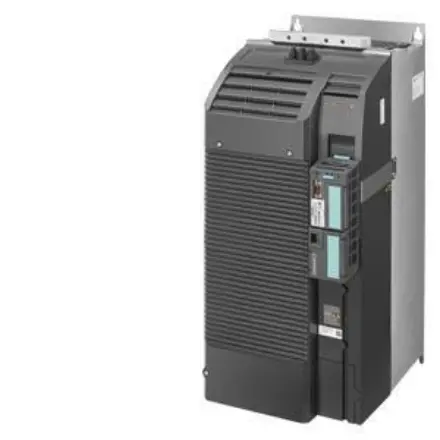

6SL3310-1PE34-6AA0 Siemens - SINAMICS G120P POWER MODULE PM330 WITHOUT FILTER WITHOUT BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 200KW FOR 150% 60S,100% 240S OUTPUT LIGHT OVERLOAD: 250KW FOR 110% 60S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 1447 X 452 X 328 (HXWXD), FSGX PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED with CU230P-2 FOR FIRMWARE-VERSION V4.6

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3310-1PE34-6AA0
Product Description SINAMICS G120P POWER MODULE PM330 WITHOUT FILTER WITHOUT BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 200KW FOR 150% 60S,100% 240S OUTPUT LIGHT OVERLOAD: 250KW FOR 110% 60S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 1447 X 452 X 328 (HXWXD), FSGX PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED with CU230P-2 FOR FIRMWARE-VERSION V4.6
Product family Not available
Product Lifecycle (PLM) PM400:Phase Out Started
PLM Effective Date Product phase-out since: 01.10.2023

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 25 Day/Days
Net Weight (kg) 109,000 Kg
Packaging Dimension 452,00 x 1447,00 x 328,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948666593
UPC 804766684326
Commodity Code 85044086
LKZ_FDB/ CatalogID D11.1SD
Product Group 3502
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 18.02.2009
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Dodecachloropentacyclo[12... > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™) covering any of its individual anti- and syn-isomers or any combination thereof Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | 1,2-Benzenedicarboxy... CAS-No. 68515-42-4 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): 1,2-Benzenedicarboxylic acid, di-C7-11-branched and linear alkyl esters (DHNUP) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Rated Data

Input
Number Of Phases 3 Ac
Line Voltage 380 ... 480 V ±10 %
Line Frequency 47 ... 63 Hz
Rated Current (Lo) 459.00 A
Rated Current (Ho) 375.00 A
Output
Number Of Phases 3 Ac
Rated Voltage 400V Iec 480V Nec 1)
Rated Power (Lo) 250.00 Kw 300.00 Hp
Rated Power (Ho) 200.00 Kw 200.00 Hp
Rated Current (Lo) 450.00 A
Rated Current (Ho) 368.00 A
Max. Output Current 608.00 A
Pulse Frequency 2 Khz
Output Frequency For Vector Control 0 ... 100 Hz
Output Frequency For V/F Control 0 ... 100 Hz
Overload Capability
Low Overload (Lo)
1.35 × Base Load Current Il (I.E., 135 % Overload) For 3 S Or 1.1 × Base Load
Current Il (I.E., 110 % Overload) For 60 S In A 300 S Cycle Time
High Overload (Ho)
1.5 × Base Load Current Ih (I.E., 150 % Overload) For 60 S In A 300 S Cycle Time

General Tech. Specifications

Power Factor Λ 0.93
Offset Factor Cos Φ 0.96
Efficiency Η 0.98
Sound Pressure Level (1M) 71 Db
Power Loss 4.40 Kw
Filter Class (Integrated) -

Ambient Conditions

Cooling Internal Air Cooling
Cooling Air Requirement 0.210 M³/S (7.416 Ft³/S)
Installation Altitude 1,000 M (3,280.84 Ft)
Ambient Temperature
Operation Lo 0 ... 40 °C (32 ... 104 °F)
Operation Ho 0 ... 50 °C (32 ... 122 °F)
Transport -25 ... 55 °C (-13 ... 131 °F)
Storage -25 ... 55 °C (-13 ... 131 °F)
Relative Humidity
Max. Operation 95 % Rh, Condensation Not Permitted

Line Side

Version M12 Screw
Conductor Cross-Section 185.00 ... 2 X 240.00 Mm²
(Awg -5 ... Mcm 2 X 500)

Motor End

Version M12 Screw
Conductor Cross-Section 150.00 ... 2 X 240.00 Mm²
(Awg -4 ... Mcm 2 X 500)
Dc Link (For Braking Resistor)
Version M12 Screw
Conductor Cross-Section 150.00 ... 2 X 240.00 Mm²
(Awg -4 ... Mcm 2 X 500)
Pe Connection M12 Screw

Max. Motor Cable Length

Shielded 100 M (328.08 Ft)
Unshielded 200 M (656.17 Ft)

Mechanical Data

Degree Of Protection Ip20 / Ul Open Type
Frame Size Gx
Net Weight 107.00 Kg (235.89 Lb)

Dimensions

Width 452 Mm (17.80 In)
Height 1,447 Mm (56.97 In)
Depth 327 Mm (12.87 In)

Standards

Compliance With Standards Ul, Cul, Ce, C-Tick (Rcm), Kc, Gost-R
(Eac)
Ce Marking Low-Voltage Directive 2006/95/Ec
Article No. : 6Sl3310-1Pe34-6Aa0
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values. Page 2 Of 2 Generated Fri Dec 20 10:47:42 Cet 2024
Converter Losses To Iec61800-9-2*
Efficiency Class Ie2
Comparison With The Reference
Converter (90% / 100%)37.60 %
The Percentage Values Show The Losses In Relation To The Rated Apparent Power Of
The Converter.
The Diagram Shows The Losses For The Points (As Per Standard Iec61800-9-2) Of
The Relative Torque Generating Current (I) Over The Relative Motor Stator Frequency
(F). The Values Are Valid For The Basic Version Of The Converter Without
Options/Components.
*Calculated Values
1)The Output Current And Hp Ratings Are Valid For The Voltage Range 440V-480V1,850.0 W (0.60 %)
1,240.0 W (0.40 %)3,760.0 W (1.20 %) 4,240.0 W (1.30 %) 4,900.0 W (1.50 %)
2,290.0 W (0.70 %) 2,050.0 W (0.60 %)
1,330.0 W (0.40 %)
F 90% 50%25%50%I
100%
