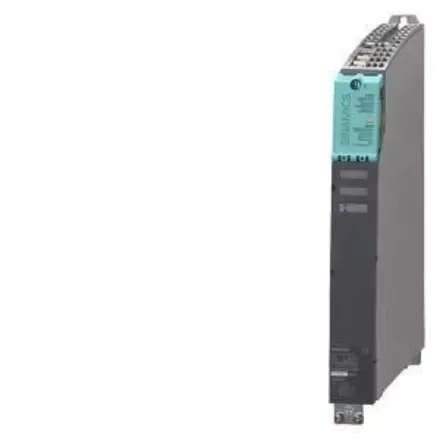

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3420-1TE21-8AA1 Siemens

6SL3420-1TE21-8AA1 Siemens - SINAMICS S120 SINGLE MOTOR MODULE EINGANG: DC 600V AUSGANG: 3AC 400V, 18A BAUFORM BOOKSIZE COMPACT INTERNE LUFTKUEHLUNG OPTIMIERTE PULSMUSTER UND UNTERSTUETZUNG HOHERWERTIGE SAFETY FUNKTIONEN INKL. DRIVE-CLIQ LEITUNG

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3420-1TE21-8AA1
Product Description SINAMICS S120 SINGLE MOTOR MODULE EINGANG: DC 600V AUSGANG: 3AC 400V, 18A BAUFORM BOOKSIZE COMPACT INTERNE LUFTKUEHLUNG OPTIMIERTE PULSMUSTER UND UNTERSTUETZUNG HOHERWERTIGE SAFETY FUNKTIONEN INKL. DRIVE-CLIQ LEITUNG
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 3,400 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4034106440527
UPC 887621117825
Commodity Code 85044086
LKZ_FDB/ CatalogID D21MC
Product Group 9617
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 18.07.2012
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Rated Data

Output Currentdc Link Voltage
Base Load Current Ihrated Value Inelectronics Power Supply
Current Demand, Max.
For S6 Duty (40%) Is6
Imaxdc-Link Current Id
Based On Ih
Rated Pulse Frequency
24 V Busbars 4)Dc Link Busbars24.0 A15.3 A22.0 A
54.0 A
8.2 Kw
4.00 Khzconsignment No. :
Remarks :Item No. :
Offer No. :Order No. :
Project :Client Order No. :
Dc 510 ... 720 V
18.0 Adc 24 V -15 % / +20 %
0.85 A
100 A
20 Atype Rating 2)
9.7 Kw Based On In
Current Carrying Capacity
650 Hz235 Μf
Output Frequency For Servo Control 5)Dc Link Capacitance
300 Hz Output Frequency For Vector Control 7)600 Hz Output Frequency For V/F Control 6)Ambient Conditions
Installation Altitude (Without
Derating)
Cooling 8)
During Operationinternal Air Cooling
0 ... 40 °C (32 ... 104 °F)1000 M (3281 Ft)
Cooling Air Requirement 0.008 M³/S
Ambient Temperature

Max. Motor Cable Length

Shielded Pe Connection M5 Screw
70 M (230 Ft)
Unshielded 100 M (328 Ft)Motor End
Version
Conductor Cross-Section Connector (X1) With Screw-Type
0 ... 6 Mm² (24 ... 10 Awg)
Integrated Connection Plug (X1) Shield Connecting Kit
Compliance With Standards
Safety Integratedstandards
Sil 2 Acc. To Iec 61508, Pl D Acc. To
En Iso 13849-1, Category 3 Acc. To
En Iso 13849-1Ce / Ul
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values.Generated Fri Dec 20 10:54:18 Cet 2024Page 1 Of 2
6Sl3420-1Te21-8Aa1Data Sheet For Motor Module
Mlfb-Ordering Data
Figure Similar

Mechanical Data

226.00 Mm (8.90 In)
Degree Of Protection Ip20 / Ul Open Type75.00 Mm (2.95 In)
Height
Net Weight 3.4 Kg (7.50 Lb)Depth
Type Of Constructionwidth
270.00 Mm (10.63 In)
Booksize Compactsound Pressure Level (1M)
0.18 Kwgeneral Tech. Specifications
Power Loss , Typ. 9)60.0 Db
9) Power Loss Of The Motor Module With Rated Power Including Losses Of The 24 V Dc Electronics Power Supplyline Side
2) Rated Output Of A Typical Standard Asynchronous Motor At 400 V 3 Ac
4) If, When Connecting Several Line Modules And Motor Modules In Series, The Current Carrying Capacity Exceeds 20 A, Another 24 V Dc Connection Is Required Using A 24 V
Terminal Adapter (Max. Connectable Cross-Section 6 Mm2, Max. Protection 20 A).
5) Observe The Dependency Between Max. Output Frequency And Current Derating. At Present, The Output Frequency Is Limited To 550 Hz, The Values Stated Apply With The High
Output Frequency License.
6) Observe The Dependency Between Max. Output Frequency And Current Derating. At Present, The Output Frequency Is Limited To 550 Hz, The Values Stated Apply With The High
Output Frequency License.
7) Observe The Dependency Between Max. Output Frequency And Current Derating.
8) Power Units With Intensified Air Cooling Thanks To Integrated Fan
