Description for 6SL3525-0PE21-5AA1 Siemens

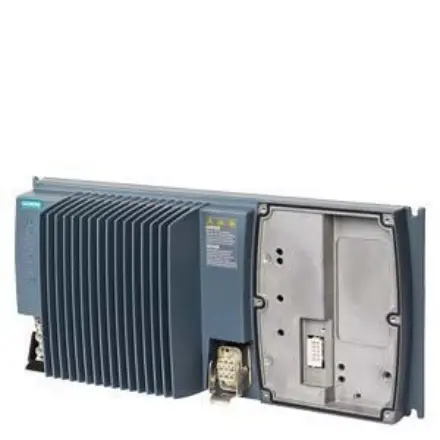

6SL3525-0PE21-5AA1 Siemens - SINAMICS G120D Power Module PM250D with integrated Class A filter capable of energy recovery. 380-480 V 3 AC+10/-10% 47-63Hz Power high overload: 1.5kW at 200% 3s, 150% 60S, 100% 300S Ambient temperature -10 to +55 °C 210x 450x 110 (HxWxD), FSA Degree of protection IP65 without Control Unit

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3525-0PE21-5AA1
Product Description SINAMICS G120D Power Module PM250D with integrated Class A filter capable of energy recovery. 380-480 V 3 AC+10/-10% 47-63Hz Power high overload: 1.5kW at 200% 3s, 150% 60S, 100% 300S Ambient temperature -10 to +55 °C 210x 450x 110 (HxWxD), FSA Degree of protection IP65 without Control Unit
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 3 Day/Days
Net Weight (kg) 5,700 Kg
Packaging Dimension 250,00 x 525,00 x 158,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169458597
UPC 040892552454
Commodity Code 85044095
LKZ_FDB/ CatalogID D11.1SD
Product Group 2245
Group Code R220
Country of origin Great Britain
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Rated Data

Input
Number Of Phases 3 Ac
Line Voltage 380 ... 500 V ±10 %
Line Frequency 47 ... 63 Hz
Rated Current 3.80 A
Output
Number Of Phases 3 Ac
Rated Voltage 400 V
Rated Power 1.50 Kw
Rated Current (In) 4.10 A
Max. Output Current 8.20 A
Pulse Frequency 4 Khz
Output Frequency For Vector Control 0 ... 200 Hz
Output Frequency For V/F Control 1)0 ... 650 Hz
Overload Capability
High Overload (Ho)
Average Max. Rated Output Current During A Cycle Time Of 300 S; 1.5 × Rated
Output Current (I.E. 150% Overload) For 60 S With A Cycle Time Of 300 S; 2 × Rated
Output Current (I.E. 200 % Overload) For 3 S With A Cycle Time Of 300 S

General Tech. Specifications

Power Factor Λ 0.95
Efficiency Η 0.97
Power Loss 0.06 Kw

Ambient Conditions

Cooling Convection
Cooling Air Requirement 0.005 M³/S (0.180 Ft³/S)
Installation Altitude 1,000 M (3,280.84 Ft)
Ambient Temperature
Operation -10 ... 55 °C (14 ... 131 °F)
Transport -40 ... 70 °C (-40 ... 158 °F)
Storage -40 ... 70 °C (-40 ... 158 °F)
Relative Humidity
Max. Operation95 % At 40 °C (104 °F); Rh,
Condensation Not Permittedconnections

Line Side

Version Han Q4/2 (Connector)
Conductor Cross-Section 1.50 ... 6.00 Mm²
(Awg 16 ... Awg 10)

Motor End

Version Han Q8 (Socket)
Conductor Cross-Section 1.00 ... 4.00 Mm²
(Awg 18 ... Awg 12)
Pe Connection On Housing With M5 Screw
Conductor Cross-Section 10.00 ... 16.00 Mm²
(Awg 8 ... Awg 6)

Max. Motor Cable Length

Shielded 15 M (49.21 Ft)
Unshielded 30 M (98.43 Ft)

Mechanical Data

Degree Of Protection Ip65 / Ul Type 3
Frame Size Fsa
Net Weight 5.70 Kg (12.57 Lb)

Dimensions

Width 445.0 Mm (17.52 In)
Height 210.0 Mm (8.27 In)
Depth 110.0 Mm (4.33 In)

Standards

Compliance With Standards Ul 508C (Ul List Number E121068), Ce,
Rcm
Ce Marking Low-Voltage Directive 2006/95/Ec
Article No. : 6Sl3525-0Pe21-5Aa1
Technical Data Are Subject To Change! There May Be Discrepancies Between Calculated And Rating Plate Values. Page 2 Of 2 Generated Fri Dec 20 15:06:26 Cet 2024
Converter Losses To Iec61800-9-2*
Efficiency Class Ie2
Comparison With The Reference
Converter (90% / 100%)70.89 %
The Percentage Values Show The Losses In Relation To The Rated Apparent Power Of
The Converter.
The Diagram Shows The Losses For The Points (As Per Standard Iec61800-9-2) Of
The Relative Torque Generating Current (I) Over The Relative Motor Stator Frequency
(F). The Values Are Valid For The Basic Version Of The Converter Without
Options/Components.
*Calculated Values
1)In Firmware V4.7 And Higher, Due To Legal Requirements, The Maximum Output Frequency Is
Restricted To 550 Hz.18.0 W (1.73 %)
