Siemens

6SL3544-0FB21-1PA0

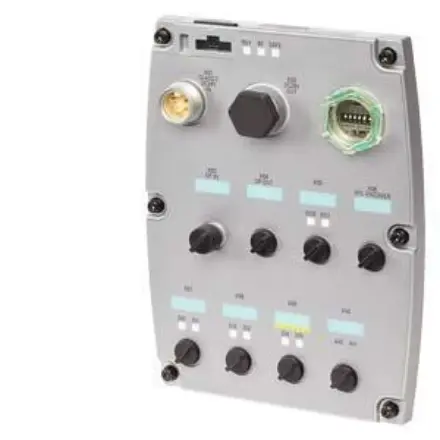

6SL3544-0FB21-1PA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6SL3544-0FB21-1PA0 Siemens

6SL3544-0FB21-1PA0 Siemens - SINAMICS G120D Control Unit CU240D-2 DP-F PROFIBUS and Safety Integrated 6 DI/3 F-DI, 2 DO/1 F-DO, 2 AI USB interface SD/MMC card interface HTL encoder interface Degree of protection IP65 Ambient temperature 0 to +55 °C without Power Module

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL3544-0FB21-1PA0
Product Description SINAMICS G120D Control Unit CU240D-2 DP-F PROFIBUS and Safety Integrated 6 DI/3 F-DI, 2 DO/1 F-DO, 2 AI USB interface SD/MMC card interface HTL encoder interface Degree of protection IP65 Ambient temperature 0 to +55 °C without Power Module
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 3 Day/Days
Net Weight (kg) 0,780 Kg
Packaging Dimension 208,00 x 278,00 x 90,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4042948661598
UPC 040892967128
Commodity Code 85049090
LKZ_FDB/ CatalogID D11.1SD
Product Group 2246
Group Code R220
Country of origin Great Britain
Compliance with the substance restrictions according to RoHS directive Since: 12.07.2017
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Electrical Data

Operating Voltage Via
External Power Supply Dc 24 V

Communication

Communication Profibus Dp, Profisave

Inputs / Outputs

Standard Digital Inputs
Number 6 (Non-Isolated)

Fail-Safe Digital Inputs

Number3 (Optionally Parameterizable As Safe
Inputs)
Digital Outputs
Number2 (0.5 A, Fed Through Switched 24 V Dc,
Isolated)
Fail-Safe Digital Outputs
Number1 (Optionally Parameterizable As Safe
Digital Output)

Analog Inputs

Number 2 (0 ... 10 V)
Closed-Loop Control Techniques
V/F Linear / Square-Law / Parameterizable Yes
V/F With Flux Current Control (Fcc) Yes
Sensorless Vector Control Yes

Ambient Conditions

Ambient Temperature
Operation 0 ... 55 °C (32 ... 131 °F)
Storage -40 ... 70 °C (-40 ... 158 °F)
Relative Humidity
Max. Operation95 % At 40 °C (104 °F); Rh,
Condensation Not Permitted
Technology
Positioning Functionality No
Design Of The Interface M12 Plug

Mechanical Data

Degree Of Protection Ip65 / Ul Type 3
Net Weight 0.8 Kg (1.77 Lb)

Dimensions

Width 153 Mm (6.02 In)
Height 208 Mm (8.19 In)
Depth 55 Mm (2.17 In)Standards
Compliance With Standards Ul 508C (Ul List Number E121068),
Cul, Ce, Rcm
Ce Marking Low-Voltage Directive 2014/35/Ec
