Description for 6SL5130-6UE21-6AD0 Siemens

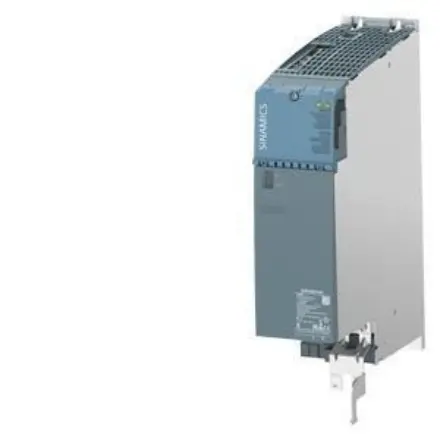

6SL5130-6UE21-6AD0 Siemens - SINAMICS S220 Smart Line Module input: 380-480 V 3AC, 29 A output: 495-720 V DC, 16 kW design: booksize D type IP20, internal air cooling only from FW V5.2 SP3 HF10

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6SL5130-6UE21-6AD0
Product Description SINAMICS S220 Smart Line Module input: 380-480 V 3AC, 29 A output: 495-720 V DC, 16 kW design: booksize D type IP20, internal air cooling only from FW V5.2 SP3 HF10
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 15 Day/Days
Net Weight (kg) 8,200 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4034106441081
UPC 195125310995
Commodity Code 85044086
LKZ_FDB/ CatalogID D38
Product Group X0HX
Group Code R220
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 31.03.2022
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead monoxide (lead oxide) Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Dodecachloropentacyclo[12... > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™) covering any of its individual anti- and syn-isomers or any combination thereof Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. | Cadmium oxide CAS-No. 1306-19-0 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Cadmium oxide Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Rated Data

Input
Number Of Phases 3 Ac
Line Voltage 380 ... 480 V
Line Frequency 47 ... 63 Hz
Short-Circuit Strength 1)100 Ka
Rated Current 28.5 A
Maximum Current 85.5 A
Dc Link Capacitance
Of The Smart Line Module 820 Μf
Of The Drive System, Maximum 20,000 Μf
Output
Rated Voltage 380 V 400 V 480 V
Rated Power 16.0 Kw 16.8 Kw 20.2 Kw
Maximum Power 48.0 Kw 51.0 Kw 61.0 Kw
Rated Current 33.0 A
Maximum Current 97.0 A
Ampacity Of The Busbars
For Electronics Power Supply At
24 V Dc20 A
For Dc-Link Connection 200 A

Electrical Data

Electronics Power Supply Dc 24 V (-15 % / 20 %)
Max. Power Consumption 0.70 A
General Technical Specifications
Line Power Factor
Fundamental Power Factor, Minimal .98
Total 0.65 ... 0.98
Sound Pressure Level 70 Db
Power Loss 3)0.150 Kw
Overvoltage Category Iec 61800-5-1:Ovc Iii

Ambient Conditions

Ambient Temperature In Operation -10 ... 55 °C (14 ... 131 °F)
Cooling Air Throughput 77.000 M³/S (0.755 Ft³/S)
Installation Altitude 1,000 M (3,280.84 Ft)
Type Of Cooling 4) ?Pmd_Aaa136_001_000 ?
Ri Suppressionstandard: No Radio Interference
Suppression; With Line Filter: Category
C2B According To En 61800-3 Total
Cable Length Up To 750 M (Shielded)Connections

Line Side

Designplug Connector With Screw Or Push-In
Connection
Conductor Cross-Section 6.0 ... 16 Mm² (Awg 10 ... Awg 8)
Pe Conductor M5 Screw/ Power Connector
Shield Connecting Kitcable Shield Connection Plate
Integrated Into The Housing

Line Length, Max.

Shielded 1,000 M (3,280.84 Ft)
Unshielded 1,200 M (3,937.01 Ft)

Mechanical Data

Degree Of Protection Ip20
Type Of Construction Booksize
Net Weight 8.2 Kg (18.08 Lb)

Dimensions

Width 100 Mm (3.94 In)
Height 380 Mm (14.96 In)
Depth 270 Mm (10.63 In)

Standards

Compliance With Standards Ce, Kc, Culus (Ul 61800-5-1, Csa 22.2
No. 274), Eac, Ukca, Rcm
1)In Conjunction With The Recommended Class J Fuse, Or Circuit Breaker According To Ul489 / Csa
22.2 No. 5-02
3)Power Loss Of The Smart Line Module With Rated Power Including Losses Of The 24 V Dc
Electronics Power Supply
4)Power Units With Intensified Air Cooling Thanks To Integrated Fan
