Siemens

6XV1847-2C

6XV1847-2C Siemens

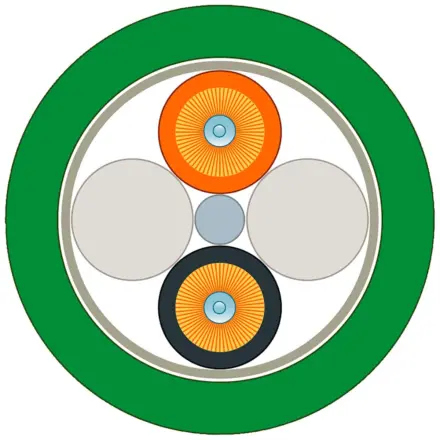

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6XV1847-2C Siemens

6XV1847-2C Siemens - FC FO Trailing Cable (62.5/200/230), Trailing cable, splittable, sold by the meter, max. length 1000 m Minimum order quantity: 20 m.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6XV1847-2C
Product Description FC FO Trailing Cable (62.5/200/230), Trailing cable, splittable, sold by the meter, max. length 1000 m Minimum order quantity: 20 m.
Product family FC glass fiber-optic cables
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 30 Day/Days
Net Weight (kg) 0,065 Kg
Packaging Dimension 1,00 x 1,00 x 1,00
Package size unit of measure MM
Quantity Unit 1 Meter
Packaging Quantity 1
Minimum order quantity 20

Additional Product Information

EAN 4019169853491
UPC 040892552584
Commodity Code 85447000
LKZ_FDB/ CatalogID IK
Product Group 2429
Group Code R323
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Optical Data

Attenuation Factor Per Length
At 850 Nm / Maximum 3.2 Db/Km
At 1300 Nm / Maximum 0.9 Db/Km
Bandwidth Length Product
At 850 Nm 200 Ghz·M
At 1300 Nm 500 Ghz·M

Mechanical Data

Number Of Fibers / Per Foc Core 1
Number Of Fo Cores / Per Foc Cable 2
Version Of The Fo Conductor Fiber Multi-Mode Gradient Fiber 62.5/200/230 Μm
Design Of The Foc Core Fixed Core
Design Of The Fiber-Optic Cable Segmentable Cable
Outer Diameter
Of The Optical Fibers 62.5 Μm
Of The Optical Fiber Sheath 230 Μm
Of The Foc Core Sheath 2.2 Mm
Symmetrical Deviation / Of The Outer Diameter Of The Foc Core
Sheath0.1 Mm
Outer Diameter / Of The Cable 8.8 Mm
Symmetrical Deviation / Of The Outer Diameter Of The Line 0.5 Mm
Material
Of The Fiber-Optic Cable Core Quartz Glass
Of The Optical Fiber Sheath Etfe
Of The Foc Core Sheath Pvc
Of The Fiber-Optic Cable Sheath Pur
Of The Strain Relief Aramid Fibers (Double-Ply)
Color
Of The Foc Core Sheath Orange/Black
Of Cable Sheath Green
Bending Radius
With Single Bend / Minimum Permissible 88 Mm
With Multiple Bends / Minimum Permissible 88 Mm
With Continuous Bending 88 Mm
Number Of Bending Cycles 5000000
Tensile Load
During Installation / Short-Term 2000 N
During Operation / Maximum 800 N
Short-Term Shear Force Per Length 500 N/Cm
Continuous Shear Force Per Length 300 N/Cm
Weight Per Length 65 Kg/Km

Ambient Conditions

Ambient Temperature
During Operation -25 ... +75 °C
During Storage -30 ... +75 °C
During Transport -30 ... +75 °C
During Installation -5 ... +50 °C
Fire Behavior Flame-Resistant Acc. To Iec 60332-1-2
Class Of Burning Behaviour / According To En 13501-6 Eca
Chemical Resistance
To Mineral Oil Resistant
To Grease Resistant
To Water Conditional Resistance
Radiological Resistance / To Uv Radiation Resistant

Product Features, Product Functions, Product Components / General

Product Feature
Halogen-Free No
Silicon-Free Yes
Product Component / Rodent Protection No
Wire Length
For Glass Foc / For 100Basefx / For Industrial Ethernet /
Maximum 3000 M
For Glass Foc / For 1000Basesx / For Industrial Ethernet /
Maximum 350 M
For Glass Foc / For 1000Baselx / For Industrial Ethernet /
Maximum 550 M
For Glass Foc / With Profibus / Maximum 3000 M

Standards, Specifications, Approvals

Certificate Of Suitability
Rohs Conformity Yes
Reference Code
According To Iec 81346-2 Wh
According To Iec 81346-2:2019 Wha
