Siemens

6XV1860-3PN45

6XV1860-3PN45 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6XV1860-3PN45 Siemens

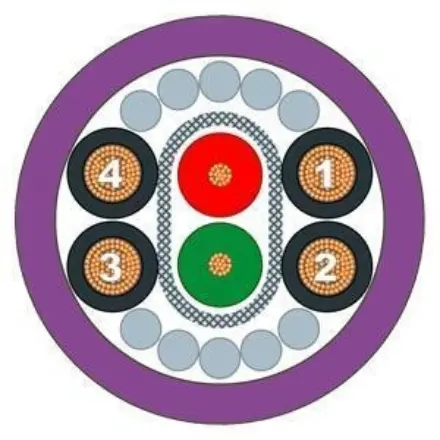

6XV1860-3PN45 Siemens - PROFIBUS ECOFAST Hybrid Cable GP, 2xCu 0.64 mm, 4x Cu 1.5 mm2, cable pre-assembled with ECOFAST plug and socket, trailable, length 45 m.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6XV1860-3PN45
Product Description PROFIBUS ECOFAST Hybrid Cable GP, 2xCu 0.64 mm, 4x Cu 1.5 mm2, cable pre-assembled with ECOFAST plug and socket, trailable, length 45 m.
Product family Not available
Product Lifecycle (PLM) PM400:Phase Out Started
PLM Effective Date Product phase-out since: 01.10.2015

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,154 Kg
Packaging Dimension 1,00 x 1,00 x 1,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169403641
UPC 662643226256
Commodity Code 85444210
LKZ_FDB/ CatalogID IK-A
Product Group 2428
Group Code R323
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Electrical Data

Attenuation Factor Per Length
At 9.6 Khz / Maximum 0.003 Db/M
At 38.4 Khz / Maximum 0.004 Db/M
At 4 Mhz / Maximum 0.025 Db/M
At 16 Mhz / Maximum 0.049 Db/M
Impedance
Rated Value 150 Ω
At 9.6 Khz 270 Ω
At 38.4 Khz 185 Ω
At 3 Mhz … 20 Mhz 150 Ω
Relative Symmetrical Tolerance
Of The Characteristic Impedance At 9.6 Khz 10 %
Of The Characteristic Impedance At 38.4 Khz 10 %
Of The Characteristic Impedance At 3 Mhz … 20 Mhz 10 %
Loop Resistance Per Length / Maximum 138 Ω/ Km
Shield Resistance Per Length / Maximum 15 Ω/ Km
Insulation Resistance Coefficient 20 G Ω·M
Operating Voltage / Maximum 80 V
Capacity Per Length / At 1 Khz 30 Pf/M
Operating Voltage / Rms Value 600 V
Conductor Cross Section / Of The Power Line 1.5 Mm²
Continuous Current / Of The Power Lines 12 A

Mechanical Data

Design Of The Shield Overlapped Aluminum-Clad Foil, Sheathed In A Braided Screen Of Tin-Plated
Copper Wires
Number Of Electrical Cores 6
Type Of Electrical Connection / Fastconnect No
Outer Diameter
Of Inner Conductor 0.67 Mm
Of The Wire Insulation 2.56 Mm
Of Cable Sheath 11 Mm
Symmetrical Tolerance Of The Outer Diameter / Of Cable Sheath 0.3 Mm
Material
Of The Wire Insulation Polyethylene (Pe)
Of Cable Sheath Pvc
Color
Of The Insulation Of Data Wires Red / Green
Of The Power Line Insulation Black
Of Cable Sheath Violet
Bending Radius
With Multiple Bends / Minimum Permissible 110 Mm
Number Of Bending Cycles 1000000; For Use In Cable Carriers, For 1 Million Bending Cycles With A Bending
Radius Of 166 Mm (15X D) And An Acceleration Of 4.0 M/S²
Tensile Load / Maximum 300 N
Weight Per Length 154 Kg/Km

Ambient Conditions

Ambient Temperature
During Operation -30 ... +80 °C
During Storage -30 ... +80 °C
During Transport -30 ... +80 °C
During Installation -30 ... +80 °C
Note Electrical Properties Measured At 20 Cel, Verification According To Din 47250
Part 4 Respectively Din Vde 0490
Fire Behavior Flame-Retardant According To Iec 60332-3-24 (Category C)
Chemical Resistance
To Mineral Oil Conditional Resistance
To Grease Conditional Resistance
Radiological Resistance / To Uv Radiation Resistant
Protection Class Ip Ip65

Product Features, Product Functions, Product Components / General

Product Feature
Halogen-Free Yes
Silicon-Free Yes

Standards, Specifications, Approvals

Ul/Etl Listing / 300 V Rating No
Ul/Etl Style / 600 V Rating Yes; Cm / Cl3 / Sunres / Oilres
Certificate Of Suitability
Eac Approval Yes
Rohs Conformity Yes
Reference Code
According To Iec 81346-2:2019 Wza
