Siemens

6XV1871-2FU10

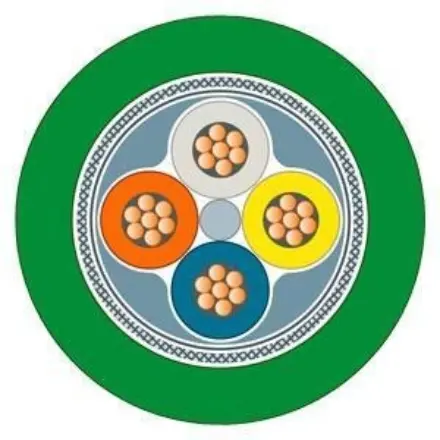

6XV1871-2FU10 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6XV1871-2FU10 Siemens

6XV1871-2FU10 Siemens - IE FastConnect TP FRNC GP cable (Type B); TP installation cable for connection to IE FC RJ45 plug 2x2; 4-core; shielded; Cat5e; delivery unit 1000 m.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6XV1871-2FU10
Product Description IE FastConnect TP FRNC GP cable (Type B); TP installation cable for connection to IE FC RJ45 plug 2x2; 4-core; shielded; Cat5e; delivery unit 1000 m.
Product family Not available
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 75,150 Kg
Packaging Dimension 1,00 x 1,00 x 1,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4019169857413
UPC 195125482289
Commodity Code 85444920
LKZ_FDB/ CatalogID IK
Product Group 2427
Group Code R323
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Electrical Data

Attenuation Factor Per Length
At 10 Mhz / Maximum 0.06 Db/M
At 100 Mhz / Maximum 0.22 Db/M
Impedance
At 1 Mhz ... 100 Mhz 100 Ω
Relative Symmetrical Tolerance
Of The Characteristic Impedance At 1 Mhz … 100 Mhz 15 %
Near-End Crosstalk Per Length
At 1 Mhz ... 100 Mhz 0.5 Db/M
Transfer Impedance Per Length / At 10 Mhz 10 M Ω/M
Loop Resistance Per Length / Maximum 120 M Ω/M
Operating Voltage
Rms Value 80 V
Nvp Value In Percent 69 %

Mechanical Data

Number Of Electrical Cores 4
Design Of The Shield Overlapped Aluminum-Clad Foil, Sheathed In A Braided Screen Of Tin-Plated
Copper Wires
Type Of Electrical Connection / Fastconnect Yes
Core Diameter
Of Awg22 Insulated Conductor 0.75 Mm
Outer Diameter
Of Inner Conductor 0.75 Mm
Of The Wire Insulation 1.5 Mm
Of The Inner Sheath Of The Cable 3.9 Mm
Of Cable Sheath 6.5 Mm
Symmetrical Tolerance Of The Outer Diameter / Of Cable Sheath 0.2 Mm
Material
Of The Wire Insulation Pp
Of The Inner Sheath Of The Cable Frnc
Of Cable Sheath Frnc
Color
Of The Insulation Of Data Wires White/Yellow/Blue/Orange
Of Cable Sheath Green
Bending Radius
With Single Bend / Minimum Permissible 39 Mm
With Multiple Bends / Minimum Permissible 97.5 Mm
Tensile Load / Maximum 150 N
Weight Per Length 68 Kg/Km

Ambient Conditions

Ambient Temperature
During Operation -25 ... +70 °C
During Storage -40 ... +75 °C
During Transport -40 ... +75 °C
During Installation 0 ... 50 °C
Note Electrical Properties Measured At 20 °C, Tests According To Din Vde 0472
Fire Behavior Flame Resistant According To Iec 60332-3-22 (Category A/F), Iec 61034-2
Class Of Burning Behaviour / According To En 13501-6 Cca S1A D0 A1
Chemical Resistance
To Mineral Oil Oil Resistant According To Iec 60811-2-1 (4 H / 70°C)
To Grease Conditional Resistance
To Water Conditional Resistance
Radiological Resistance / To Uv Radiation Resistant

Product Features, Product Functions, Product Components / General

Product Feature
Halogen-Free Yes; Halogen-Free According To Iec 60754-1/2
Silicon-Free Yes
Low-Emission According To Iec 61034-2 Yes
Wire Length / For Industrial Ethernet
With 100Basetx 100 M

Standards, Specifications, Approvals

Ul/Etl Listing / 300 V Rating Yes; C(Etl)Us, Cmg / Pltc / Sun Res / Oil Res
Ul/Etl Style / 600 V Rating Yes; Cruus Awm 22375 Awm I A/B 60°C 600V Ft2
Certificate Of Suitability
Eac Approval Yes
Ce Marking Yes
Rohs Conformity Yes
Standard For Structured Cabling Cat5E
Marine Classification Association
American Bureau Of Shipping Europe Ltd. (Abs) No
French Marine Classification Society (Bv) No
Det Norske Veritas (Dnv) No
Germanische Lloyd (Gl) No
Lloyds Register Of Shipping (Lrs) No
Nippon Kaiji Kyokai (Nk) No
Polski Rejestr Statkow (Prs) No
Reference Code
According To Iec 81346-2 Wg
According To Iec 81346-2:2019 Wgb
