Siemens

6XV1871-2T

6XV1871-2T Siemens

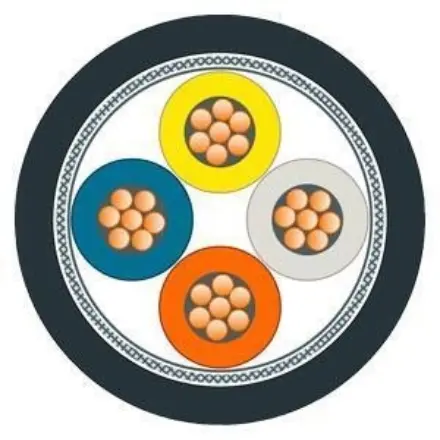

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6XV1871-2T Siemens

6XV1871-2T Siemens - IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail applications, for connection to FC RJ45 plug 2x2, FC M12 plug pro 2x2; railway-certified, 4-core, shielded, Cat5e, sold by the meter, max. delivery unit 2000 m, minimum order quantity 20 m.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6XV1871-2T
Product Description IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail applications, for connection to FC RJ45 plug 2x2, FC M12 plug pro 2x2; railway-certified, 4-core, shielded, Cat5e, sold by the meter, max. delivery unit 2000 m, minimum order quantity 20 m.
Product family IE FC TP cable 2 x 2
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 25 Day/Days
Net Weight (kg) 0,071 Kg
Packaging Dimension 0,60 x 100,00 x 0,60
Package size unit of measure CM
Quantity Unit 1 Meter
Packaging Quantity 1
Minimum order quantity 20

Additional Product Information

EAN 4019169854894
UPC 887621265687
Commodity Code 85444991
LKZ_FDB/ CatalogID IK
Product Group 2428
Group Code R323
Country of origin Switzerland
Compliance with the substance restrictions according to RoHS directive Since: 30.09.2012
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Electrical Data

Attenuation Factor Per Length
At 10 Mhz / Maximum 0.053 Db/M
At 100 Mhz / Maximum 0.188 Db/M
Impedance
At 1 Mhz ... 100 Mhz 100 Ω
Relative Symmetrical Tolerance
Of The Characteristic Impedance At 1 Mhz … 100 Mhz 5 %
Near-End Crosstalk Per Length
At 1 Mhz ... 100 Mhz 0.5 Db/M
Transfer Impedance Per Length / At 10 Mhz 8 Mω/M
Loop Resistance Per Length / Maximum 124 M Ω/M
Operating Voltage
Rms Value 125 V

Mechanical Data

Number Of Electrical Cores 4
Design Of The Shield Overlapped Aluminum-Clad Foil, Sheathed In A Braided Screen Of Tin-Plated
Copper Wires
Type Of Electrical Connection / Fastconnect No
Core Diameter
Of Awg22 Insulated Conductor 0.75 Mm
Outer Diameter
Of Inner Conductor 0.75 Mm
Of The Wire Insulation 1.5 Mm
Of Cable Sheath 6.6 Mm
Symmetrical Tolerance Of The Outer Diameter / Of Cable Sheath 0.2 Mm
Material
Of The Wire Insulation Polyethylene (Pe)
Of Cable Sheath Elastomer Meshed Electron Beam
Color
Of The Insulation Of Data Wires White/Yellow/Blue/Orange
Of Cable Sheath Black
Bending Radius
With Single Bend / Minimum Permissible 40 Mm
With Multiple Bends / Minimum Permissible 40 Mm
Tensile Load / Maximum 150 N
Weight Per Length 71 Kg/Km

Ambient Conditions

Ambient Temperature
During Operation -40 ... +80 °C
During Storage -40 ... +80 °C
During Transport -40 ... +80 °C
During Installation -20 ... +60 °C
Note 160 °C Temporarily Under Short-Circuit Conditions
Ambient Condition / For Operation Electrical Characteristics Measured At 20 ºc, Tests According To En 50288-2-1
Fire Behavior Bs 6853, Din5510-2 Brandschutzstufe 1-4, Pren 45545-2 Hazard Level Hl 1-
Hl 3, En 50306-4, Nf F 16-101, Nfpa130
Chemical Resistance
To Mineral Oil En 50306-4 (72H/100 °C, Irm 902, 168H/70 °C, Irm 903)
To Grease Conditional Resistance
To Water Conditional Resistance
Radiological Resistance / To Uv Radiation Resistant

Product Features, Product Functions, Product Components / General

Product Feature
Halogen-Free Yes
Silicon-Free Yes
Wire Length / For Industrial Ethernet
With 100Basetx 100 M

Standards, Specifications, Approvals

Ul/Etl Listing / 300 V Rating No
Ul/Etl Style / 600 V Rating No
Certificate Of Suitability
Eac Approval Yes
Ce Marking Yes
Rohs Conformity Yes
Standard For Structured Cabling Cat5
Marine Classification Association
American Bureau Of Shipping Europe Ltd. (Abs) No
French Marine Classification Society (Bv) No
Det Norske Veritas (Dnv) No
Germanische Lloyd (Gl) No
Lloyds Register Of Shipping (Lrs) No
Nippon Kaiji Kyokai (Nk) No
Polski Rejestr Statkow (Prs) No
Reference Code
According To Iec 81346-2 Wg
According To Iec 81346-2:2019 Wgb
