Siemens

6XV1873-2B

6XV1873-2B Siemens

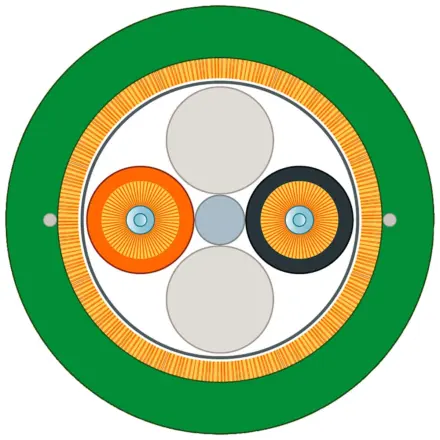

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 6XV1873-2B Siemens

6XV1873-2B Siemens - FO FRNC Cable (50/125/OM2), halogen-free cable, splittable, for permanent routing, max. length 1000 m minimum order quantity 20 m sold by the meter

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 6XV1873-2B
Product Description FO FRNC Cable (50/125/OM2), halogen-free cable, splittable, for permanent routing, max. length 1000 m minimum order quantity 20 m sold by the meter
Product family Glass fiber-optic cables
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 1 Day/Days
Net Weight (kg) 0,085 Kg
Packaging Dimension 1,00 x 1,00 x 1,00
Package size unit of measure MM
Quantity Unit 1 Meter
Packaging Quantity 1
Minimum order quantity 20

Additional Product Information

EAN 4019169852845
UPC 887621883560
Commodity Code 85447000
LKZ_FDB/ CatalogID IK
Product Group 2429
Group Code R323
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number

Optical Data

Attenuation Factor Per Length
At 850 Nm / Maximum 2.7 Db/Km
At 1300 Nm / Maximum 0.7 Db/Km
Bandwidth Length Product
At 850 Nm 600 Ghz·M
At 1300 Nm 1200 Ghz·M

Mechanical Data

Number Of Fibers / Per Foc Core 1
Number Of Fo Cores / Per Foc Cable 2
Version Of The Fo Conductor Fiber Multi-Mode Gradient Fiber 50/125 Μm, Om 2
Design Of The Foc Core Hollow Core, Filled, Diameter 1400 Μm
Design Of The Fiber-Optic Cable Segmentable
Outer Diameter
Of The Optical Fibers 50 Μm
Of The Optical Fiber Sheath 125 Μm
Of The Foc Core Sheath 2.9 Mm
Symmetrical Deviation / Of The Outer Diameter Of The Foc Core
Sheath0.1 Mm
Outer Diameter / Of The Cable 9.2 Mm
Symmetrical Deviation / Of The Outer Diameter Of The Line 0.3 Mm
Material
Of The Fiber-Optic Cable Core Quartz Glass
Of The Optical Fiber Sheath Quartz Glass
Of The Foc Core Sheath Frnc
Of The Fiber-Optic Cable Sheath Frnc
Of The Strain Relief Aramid Fibers
Color
Of The Foc Core Sheath Orange/Black
Of Cable Sheath Green
Bending Radius
With Single Bend / Minimum Permissible 90 Mm
With Multiple Bends / Minimum Permissible 135 Mm
Tensile Load
During Installation / Short-Term 1200 N
During Operation / Maximum 500 N
Short-Term Shear Force Per Length 500 N/Cm
Weight Per Length 85 Kg/Km

Ambient Conditions

Ambient Temperature
During Operation -40 ... +85 °C
During Storage -40 ... +85 °C
During Transport -40 ... +85 °C
During Installation -5 ... +50 °C
Fire Behavior Flame-Resistant Acc. To Iec 60332-1-2 And Iec 60332-3-22 (Cat. A)
Class Of Burning Behaviour / According To En 13501-6 Eca
Chemical Resistance
To Mineral Oil Acc. To Iec 60811-404 With Test Oil Irm 902 (Acc. To Iso 1817), +70 °C, 4 H And
+25 °C, 168 H
To Grease Conditional Resistance
To Water Conditional Resistance
Radiological Resistance / To Uv Radiation Resistant

Product Features, Product Functions, Product Components / General

Product Feature
Halogen-Free Yes
Silicon-Free Yes
Product Component / Rodent Protection No
Wire Length
For Glass Foc / For 100Basefx / For Industrial Ethernet /
Maximum 5000 M
For Glass Foc / For 1000Basesx / For Industrial Ethernet /
Maximum 750 M
For Glass Foc / For 1000Baselx / For Industrial Ethernet /
Maximum 2000 M
For Glass Foc / For 1000Baselsx / For Industrial Ethernet
/ Maximum2000 M
For Glass Foc / For 10Gbaselx4 / For Industrial Ethernet /
Maximum 300 M
For Glass Foc / With Profibus / Maximum 3000 M

Standards, Specifications, Approvals

Certificate Of Suitability
Ul Approval Yes; C(Ul)Us Ofn Ft4
Rohs Conformity Yes
Reference Code
According To Iec 81346-2 Wh
According To Iec 81346-2:2019 Wha
