Siemens

7SR1913-1GA12-1CA0

7SR1913-1GA12-1CA0 Siemens

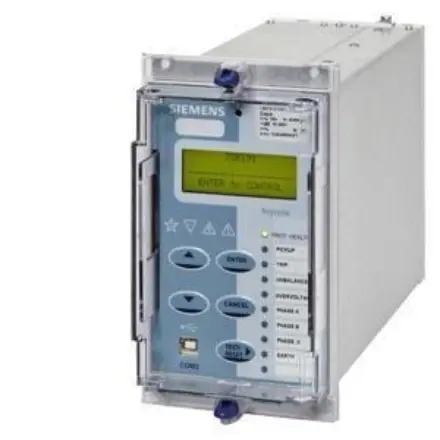

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 7SR1913-1GA12-1CA0 Siemens

7SR1913-1GA12-1CA0 Siemens - Capa 7SR191, capacitor bank protection relay, housing I/O and fascia: 4 CT, 6 binary inputs / 8 binary outputs, 10 LEDs, measuring input: 1/5 A, 50/60 Hz, auxiliary voltage: 80-250 V DC / 115 V AC, binary input threshold 19 V DC, communication interface: standard version: USB front port, RS485 rear port (E4 Case) , IEC 60870-5-103, Modbus RTU and DNP3, standard version - no push buttons

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 7SR1913-1GA12-1CA0
Product Description Capa 7SR191, capacitor bank protection relay, housing I/O and fascia: 4 CT, 6 binary inputs / 8 binary outputs, 10 LEDs, measuring input: 1/5 A, 50/60 Hz, auxiliary voltage: 80-250 V DC / 115 V AC, binary input threshold 19 V DC, communication interface: standard version: USB front port, RS485 rear port (E4 Case) , IEC 60870-5-103, Modbus RTU and DNP3, standard version - no push buttons
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 31.12.2022
Notes Sucessor:Auxiliary power supply options - 9th digit of MLFB ( J,G,H => M,N ) Sorry but this product is currently not available.

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) On request
Net Weight (kg) 3,200 Kg
Packaging Dimension 0,22 x 0,36 x 0,17
Package size unit of measure M
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC Not available
Commodity Code 85364900
LKZ_FDB/ CatalogID PTD/EA
Product Group 1341
Group Code U321
Country of origin India
Compliance with the substance restrictions according to RoHS directive Since: 30.05.2013
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
