Siemens

7SR5110-4AF12-0AA0

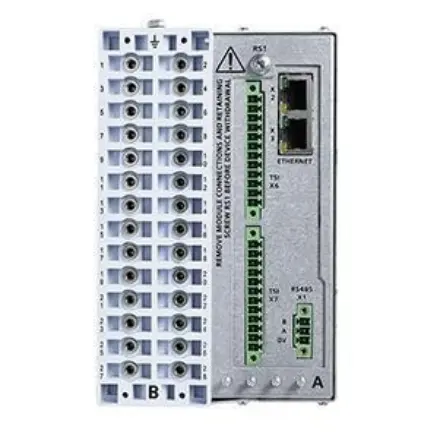

7SR5110-4AF12-0AA0 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 7SR5110-4AF12-0AA0 Siemens

7SR5110-4AF12-0AA0 Siemens - Overcurrent time prot. 7SR51 4 curr. trans., 8 TSI (Temperature Sensor Input), 23 BI, 12 BO, Standard interface: 1 x USB (front), RS 485 (rear) + 2 x RJ45 interface, S8 enclosure

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 7SR5110-4AF12-0AA0
Product Description Overcurrent time prot. 7SR51 4 curr. trans., 8 TSI (Temperature Sensor Input), 23 BI, 12 BO, Standard interface: 1 x USB (front), RS 485 (rear) + 2 x RJ45 interface, S8 enclosure
Product family Reyrolle 7SR51 - 4/5xI, 0/4xV
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 30 Day/Days
Net Weight (kg) 3,760 Kg
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN Not available
UPC Not available
Commodity Code 85363010
LKZ_FDB/ CatalogID PTD/EA
Product Group 1340
Group Code U321
Country of origin India
Compliance with the substance restrictions according to RoHS directive Since: 27.08.2019
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number

Product details

number of function keys 7
number of LEDs 28

Product Functions

type of measured value detection / of operational measured
type of measured value detection / expanded / min./max .
switching statistics Yes
circuit breaker monitoring Yes
product feature / logic editor Yes
control Yes
fault recording for analog and digital signals Yes
sequence-of-events recorder Yes
monitoring Yes
number of parameter sets 4
parameter set switchover Yes
circuit breaker test Yes

Protection Functions

three-pole tripping Yes
undervoltage protection (ANSI 27) No
directional power monitoring (ANSI 32) No
undercurrent protection (ANSI 37) Yes
unbalance protection (ANSI 46) Yes
overcurrent-time protection negative sequence system (ANSI
phase-rotation supervision (ANSI 47) No
thermal overload protection (ANSI 49) Yes
definite overcurrent-time protection (ANSI 50/50N) Yes
arc protection (ANSI AFD) Yes
sensitive ground current protection (ANSI 50Ns) Yes
circuit breaker failure protection (ANSI 50BF) Yes
dependent overcurrent-time protection (ANSI 51/51N) Yes
power factor (ANSI 55) No
overvoltage protection (ANSI 59) No
overvoltage protection zero-sequence system (ANSI 59N) No
directional overcurrent-time protection, phases (ANSI 67) No
directional ground fault protection (ANSI 67N) No
directional sensitive ground-fault detection for resonant -
trip-circuit supervision (ANSI 74TC) Yes
frequency protection (ANSI 81) No
closing lock-out (ANSI 86) Yes
external trip initiation Yes

Supply voltage

type of voltage / of the supply voltage AC/DC
supply voltage / at DC 24 ... 250 V
supply voltage / at AC 100 ... 230 V

Inputs / Outputs

number of digital outputs / incl. signaling contact / maximum 12
number of voltage inputs / maximum 0
number of current inputs / maximum 4
number of digital inputs / maximum 23
number of digital outputs / incl. signaling contact / maximum 12

Communication

product component / operating interface (on the front) Yes
protocol / is supported / Modbus TCP Yes
protocol / is supported / IEC 60870-5-103 Yes
protocol / is supported / IEC 61850-8-1 Yes
protocol / is supported / Modbus RTU slave Yes
protocol / is supported / DNP 3, serial Yes
protocol / is supported / DNP 3.0 TCP as server Yes
protocol / is supported / PRP Yes
protocol / is supported / RSTP Yes
protocol / is supported / HSR Yes
protocol / is supported / IEC 61850 -8-1 Yes
protocol / is supported / Modbus TCP Yes
protocol / is supported / Modbus RTU slave Yes

Time synchronization

type of time synchronization Data comms or Digital input

Mechanical Design

width 205 mm
height 177 mm
depth 217.5 mm
frame size of enclosure S8
product function / hardware configuration expandable No

Environmental conditions

ambient temperature / during operation -10 ... +55 °C
