Siemens

7XV5651-0CA00

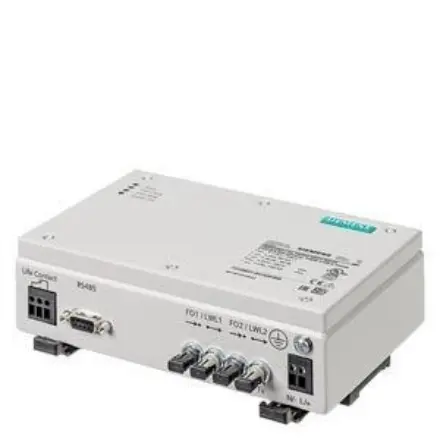

7XV5651-0CA00 Siemens

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 7XV5651-0CA00 Siemens

7XV5651-0CA00 Siemens - CONVERTER OPTICAL FIBRE TO RS485 2CHANEL CONVERTER OPTICAL FIBRE CABLE 820NM TO RS485. LINE STRUCTURE UP TO 115KBAUD. (NOT SUITED FOR PROFIBUS APPLICATIONS). WITH RTU RING REDUNDANCY. AUXILIARY SUPPLY 24-250V DC AND 110-230V AC. WITH ALARM RELAY. CONNECT. PROTECTION RELAYS OR RTU WITH RS485 INTERFACE VIA 9POL. SUB-D-PLUG. CONNECT PC OR MODEM VIA OPTICAL FIBRE CABLE 820NM, ST-PLUG FOR OPT. FIBRE CABLE 62,5 MU-METER. FOR MOUNTING ON DIN-RAIL. METAL HOUSING.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 7XV5651-0CA00
Product Description CONVERTER OPTICAL FIBRE TO RS485 2CHANEL CONVERTER OPTICAL FIBRE CABLE 820NM TO RS485. LINE STRUCTURE UP TO 115KBAUD. (NOT SUITED FOR PROFIBUS APPLICATIONS). WITH RTU RING REDUNDANCY. AUXILIARY SUPPLY 24-250V DC AND 110-230V AC. WITH ALARM RELAY. CONNECT. PROTECTION RELAYS OR RTU WITH RS485 INTERFACE VIA 9POL. SUB-D-PLUG. CONNECT PC OR MODEM VIA OPTICAL FIBRE CABLE 820NM, ST-PLUG FOR OPT. FIBRE CABLE 62,5 MU-METER. FOR MOUNTING ON DIN-RAIL. METAL HOUSING.
Product family 7XV5650/51 - RS485 Optical Fiber Converter
Product Lifecycle (PLM) PM300:Active Product

Delivery information

Export Control Regulations AL : N / ECCN : N
Estimated dispatch time (Working Days) 10 Day/Days
Net Weight (kg) 1,180 Kg
Packaging Dimension 25,60 x 38,60 x 26,60
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4025515717348
UPC Not available
Commodity Code 85176200
LKZ_FDB/ CatalogID PTD/EA
Product Group 1320
Group Code U321
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 16.03.2020
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
