Siemens

7XV5664-1AA00

7XV5664-1AA00 Siemens

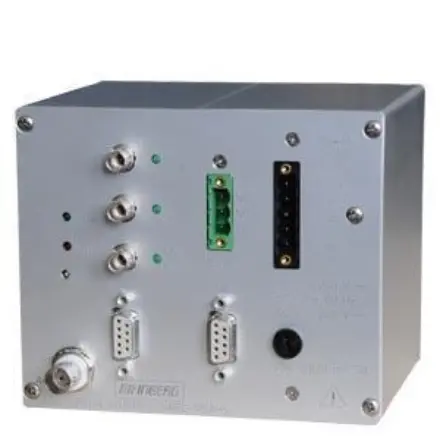

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 7XV5664-1AA00 Siemens

7XV5664-1AA00 Siemens - SPECIFIC PRECISE SYNCHRONIZING FOR SIPROTEC 5-PMU, DIFFEREN- TIAL PROTECTION, 7KE85 AND SIMEAS R-PMU. ALSO FOR NORMAL TIME SYNCHRONIZING OF SIPROTEC 3/4/5 AND PQ E.G. SICAM Q80 V3 AND SIEMEAS R(SYNC-BOX REPLACE) . TIME RECEIVER WITH PRECISE INTEGRATED CLOCK, WITH GPS- ANTENNA, LIGHTNING PROTECTION AND 50M (+5M) RG58 CABLE. 3 PROGRAMMABLE OPTICAL OUTPUTS (HIGH PRECISION PULS, IRIG-B, DCF77) WITH ST-PLUGS FOR 50/ 125ΜM OR 62,5/125ΜM, 850NM MUL- TIMODE FIBER. AUXILIARY VOLTAGE 100V-240V DC/AC(50/60HZ). WITH FAIL SAVE RELAY. DIN RAIL MOUNTING. PARAMETERIZATION-SW AND -CABLE.

Free Delivery to UK Mainland on orders over £25

Product

Article Number (Market Facing Number) 7XV5664-1AA00
Product Description SPECIFIC PRECISE SYNCHRONIZING FOR SIPROTEC 5-PMU, DIFFEREN- TIAL PROTECTION, 7KE85 AND SIMEAS R-PMU. ALSO FOR NORMAL TIME SYNCHRONIZING OF SIPROTEC 3/4/5 AND PQ E.G. SICAM Q80 V3 AND SIEMEAS R(SYNC-BOX REPLACE) . TIME RECEIVER WITH PRECISE INTEGRATED CLOCK, WITH GPS- ANTENNA, LIGHTNING PROTECTION AND 50M (+5M) RG58 CABLE. 3 PROGRAMMABLE OPTICAL OUTPUTS (HIGH PRECISION PULS, IRIG-B, DCF77) WITH ST-PLUGS FOR 50/ 125ΜM OR 62,5/125ΜM, 850NM MUL- TIMODE FIBER. AUXILIARY VOLTAGE 100V-240V DC/AC(50/60HZ). WITH FAIL SAVE RELAY. DIN RAIL MOUNTING. PARAMETERIZATION-SW AND -CABLE.
Product family Not available
Product Lifecycle (PLM) PM410:Product cancellation
PLM Effective Date Product is cancelled since: 11.10.2024
Notes Sucessor:GNSS clock 7XV5664-1AB00 in preparation Sorry but this product is currently not available.

Delivery information

Export Control Regulations ECCN : N / AL : N
Estimated dispatch time (Working Days) On request
Net Weight (kg) 1,000 Kg
Packaging Dimension 50,00 x 60,00 x 40,00
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1

Additional Product Information

EAN 4025515717416
UPC Not available
Commodity Code 91059100
LKZ_FDB/ CatalogID PTD/EA
Product Group 1320
Group Code U321
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 18.11.2015
Product class B: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back Obligation No
REACH Art. 33 Duty to inform according to the current list of candidates Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
