Siemens

BVP:610416

BVP:610416 Siemens

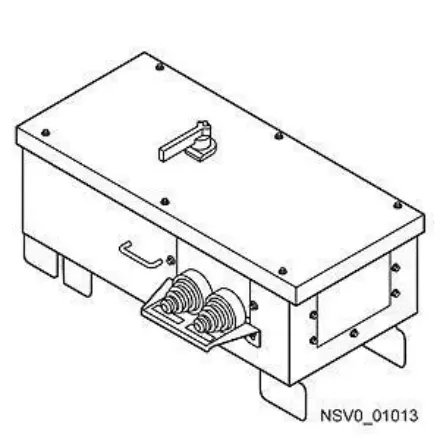

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for BVP:610416 Siemens

BVP:610416 Siemens - BD2-AK05/FS400BS-4 TAP-OFF UNIT 320A / 1X 4 POLE WITH BS FUSE SWITCH

Free Delivery to UK Mainland on orders over £25

Model

Product Designation Tap-Off Unit For Bd2 Busbar Trunking System
Operating Voltage At Ac
At 50 Hz Rated Value Maximum 400 V
At 60 Hz Rated Value Maximum 400 V

Protection Class

Protection Class Ip Ip54, Mit Zusatzausruestung: Ip55

Main Circuit

Operating Frequency Rated Value
Minimum 50 Hz
Maximum 60 Hz
Operation Al Current
For Circuit 1 At Ac At 50 Hz Rated Value Maximum 320 A
For Circuit 1 At Ac At 60 Hz Rated Value Maximum 320 A

Connections

Connectable Conductor Cross-Section In The Outgoing Unit
Minimum 10 Mm²

Tap-Off Points

Outgoing Unit Version Cable Entry
Design Of Short-Circuit And Overloading Protection In The
Outgoing Unit4-Pole 400 A Fuse-Switch
Size Of The Outgoing Unit 05
Number Of Poles Of The Outgoing Unit 5

Mechanical Design

Height 408 Mm
Width 494 Mm
Length 924 Mm
Product Component Locking Mechanism Yes
