Weidmuller

2429870000

2429870000 Weidmuller

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for 2429870000 Weidmuller

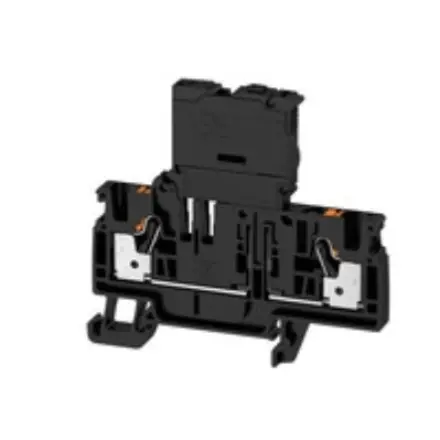

2429870000 Weidmuller - Fuse terminal, PUSH IN, 4 mm², 36 V, 6.3 A, Black

Extended Description for 2429870000 Weidmuller

2429870000 Weidmuller - Fuse terminal, PUSH IN, 4 mm², 36 V, 6.3 A, Black

Free Delivery to UK Mainland on orders over £25

Product Detail

Colour Black
Connectable conductor cross section fine-strand with cable end sleeve 0.5...4 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5...4 mm²
Connectable conductor cross section multi-wired 0.5...4 mm²
Connectable conductor cross section solid-core 0.5...4 mm²
Depth 80 mm
End plate required yes
Inflammability class of insulation material acc. with UL94 V0
Material insulation body Thermoplastic
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operation temperature -60...130 °C
Rated current In 6.3 A
Rated voltage 36 V
Supply voltage for defect-indication 36...36 V
Type of electrical connection 1 Plug clamp connection
Type of electrical connection 2 Plug clamp connection
Type of fuse holder Pluggable
Type of fuse insert G-fuse 5x25 mm
Type of indication element for defect indication LED
Voltage type for defect indication AC/DC
Width 6.1 mm
